亚洲第一av导航av尤物丨色婷婷综合久久久久中文字幕丨多毛小伙内射老太婆丨精品国产一区二区av麻豆不卡丨免费网站观看www在线观看

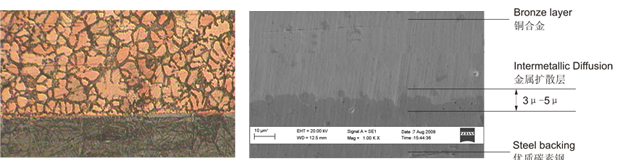

It can be seen from the metallographic diagram that there is mutual diffusion between the steel and copper alloy in the critical region, and the diffusion layer generated in the casting process is about 3μ-5μbetween the two materials to achieve complete metallurgical bonding and form a good bonding strength, which in any case exceeds the mechanical strength of the copper alloy itself.

The diffusion of steel and copper between each other provides excellent mechanical properties of this material, while the heat generated during the operation of the bearing can be transferred in time. The thin-walled copper alloy layer allows the double-layer material to have a similar coefficient of thermal expansion, so the 650GT material can be heat-treated as needed after casting, which means that this new material can ensure high accuracy and mechanical fit during use.

It combines the wear resistance of copper alloy with the high mechanical strength of steel.

· Different copper alloys can be cast according to the requirements of working conditions, including lead-copper alloys with low friction properties;

· Due to the different friction coefficients of the inner and outer layer materials, the bearing can be prevented from moving and rotating under high load and low speed conditions;

· It can be covered or inlaid with solid lubricant on the working surface as needed to achieve self-lubrication;

· Compared with pure copper sleeve, it has more cost advantages and saves resources;

· Can carry out post-processing, such as heat treatment of steel matrix, alloy layer machining, etc.;

· One or more layers of copper alloy casting can be performed on different or complex surfaces according to the design needs;

· Similar to the traditional copper sleeve in the use of characteristics, can be suitable for different temperatures under different lubrication conditions;

· Compared with pure copper sleeve, it has better mechanical bearing performance, especially impact strength
